Technical Specification

Model

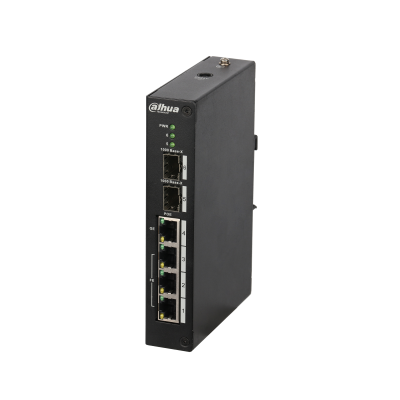

DH-PFS4206-4P-120

Ethernet Port

2*1000 Base-X(SFP)

1*10/100/1000 Base-T(Hi-PoE/PoE+/PoE)

3*10/100 Base-T (PoE+/PoE)

PoE Power Consumption

Port1, 2, 3 ≤30W

Port4≤60W

Total≤120W

PoE Protocol

PoE(802.3af), PoE+(802.3at), Hi-PoE

Switching Capacity

6.8Gbps

Packet Forwarding Rate

4.91Mpps

Packet Buffer Memory

1Mb

Application Humidity

10%~90%

Power

DC48~57V

Lightning Protection

Common Mode 4KV

Differential Mode 2KV

Working Temperature

-30°C~65°C

Weight

480g

Dimension(W×D×H)

150mm×100mm×30mm

Service Characteristics

System

Username / password: admin/(empty)

IP Address :192.168.1.110/24

PoE Budget

120W

MAC Table Size

8K

VLAN

802.1Q Standard VLAN

Port Mirroring

Support many-to-one port mirroring

Flow Control

Support half-duplex based on back pressure type control

Support full duplex based on PAUSE frame

Network Management

WEB, SNMP V1/V2C

Ring Network

Support Spanning Tree, STP/RSTP

Support Loop Detection

PoE Management

Support PoE power consumption, PoE on/off of IPC configuration, power down when exceeding the value of overload power
