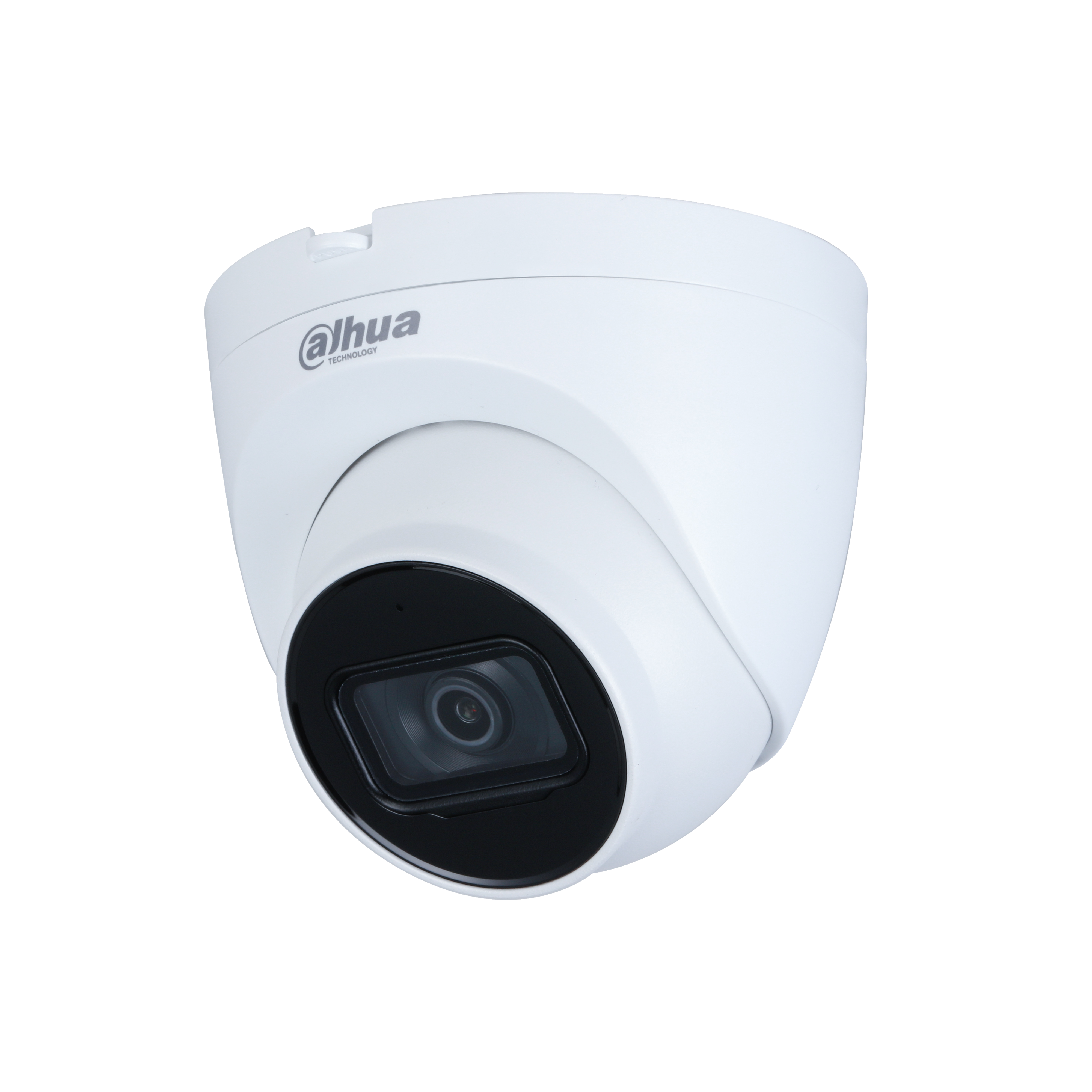

Cámara IP Domo 4MP

Cámara IP Domo 4MP

$73926

Cámara de red de Domo fijo IR Lite de 4MP

  • Sensor de imagen CMOS de 1/3″ de 4MP, baja iluminación, alta definición de imagen
  • Salida de 4MP (2560 × 1440) @ 25/30 fps, admite un máximo de 4MP (2688 × 1520) @ 20 fps
  • Codificación H.265, alta relación de compresión, baja tasa de bits
  • LED IR incorporado, distancia máxima de IR: 30 m
  • ROI, SMART H.264+/H.265+, codificación flexible, aplicable a varios entornos de ancho de banda y almacenamiento
  • Modo de rotación, WDR, 3D NR, HLC, BLC, marca de agua digital, aplicable a varias escenas de monitoreo
  • Detección inteligente: intrusión, línea de cruce
  • Detección de anomalías: detección de movimiento, manipulación de video, sin tarjeta SD, tarjeta SD llena, error de tarjeta SD, desconexión de red, conflicto de IP, acceso ilegal, detección de voltaje
  • Tarjeta SD máxima de 256 GB y micrófono incorporado
  • Fuente de alimentación de 12V DC/POE
  • Protección IP67

Sin existencias

SKU: DH-IPC-HDW2431T-AS-0280B-S2 Categorías: , , ,

Descripción

Camera
Image Sensor 1/3” 4Megapixel progressive CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.008 Lux @ F1.6
S/N Ratio >56 dB
Illumination Distance 30 m (98.43 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm
3.6 mm
Max. Aperture F1.6
F1.6
Field of View 2.8 mm:
Horizontal 102.0° × Vertical 55.0° × Diagonal 121.0°

3.6 mm :
Horizontal 84.0° × Vertical 45.0° × Diagonal 100.0°
Iris Type Fixed
Close Focus Distance 2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (3.61 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 56 m (183.73 ft) 22.4 m

(73.49 ft)

 11.2 m

(36.75 ft)

 5.6 m

(18.37 ft)
3.6 mm 80 m (262.47 ft) 32.0 m (104.99 ft) 16.0 m

(52.49 ft)

 8.0 m

(26.25 ft)
Smart event
IVS Tripwire; intrusion
Video
Video Compression H.265; H.264; H.264B; MJPEG(only supported

by sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream:

2688 × 1520 (1 fps-20 fps)

2560 × 1440 (1 fps-25/30 fps)

Sub stream:

704 × 576 (1 fps-25 fps)

704 × 480 (1 fps-30 fps)
Stream Capability 2 streams
Resolution 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection Disable/Enable (4 areas, rectangle)
Region of Interest(RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution.)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711A; G.711Mu; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host 20
Storage FTP; Micro SD card (support max. 256 G); NAS; SFTP
Browser IE
Google
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply 12V DC/PoE
Power Consumption Basic power consumption: 2.1W (12V DC), 2.5W (POE)

Max power consumption (H.265, Max resolution, Max stream, WDR, IR full intensity, IVS): 5.7W (12V DC), 6.6W (POE)
Environment
Operating Temperature -40°C to +60°C (-40°F to +140°F)
Operating Humidity ≤95%
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Storage Humidity ≤95%
Protection IP67
Structure
Casing Metal + Plastic
Dimensions 100.9 mm × Φ109.9 mm (3.97″ × Φ4.33″)
Net Weight 0.39 kg (0.86 lb)
Gross Weight 0.52 kg (1.15 lb)
