Dahua
DH-IPC-HDW2230T-AS-0280B-S2

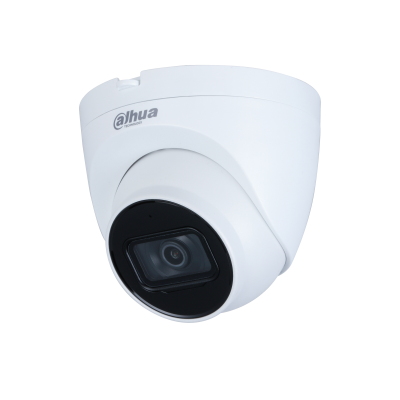

Cámara IP Domo 2MP con IR

Consulte disponibilidad en la sucursal más cercana

Dahua

Cámara IP Domo 2MP con IR

Modelo: DH-IPC-HDW2230T-AS-0280B-S2

CCTV > IP > Cámaras > Domo, CCTV > IP > Cámaras, CCTV > IP, CCTV

Días
Horas
Minutos
Segundos

$56062

Precio (IVA Incluído)

El precio puede estar sujeto a cambios,
confirme con nuestros asesores de ventas.

Consulte disponibilidad en la sucursal más cercana

Descripción Corta

CCTV > IP > Cámaras > Domo, CCTV > IP > Cámaras, CCTV > IP, CCTV

Características

Camera
Image Sensor 1/2.7” 2Megapixel progressive CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.005 Lux @ F1.6
S/N Ratio >56 dB
Illumination Distance 30 m (98.43 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm
3.6 mm
Max. Aperture F1.6
F1.6
Field of View 2.8 mm:

Horizontal 110.0° × Vertical 59.0° × Diagonal 132.0°

3.6 mm:

Horizontal 91.0° × Vertical 48.0° × Diagonal 109.0°

Iris Type Fixed
Close Focus Distance 2.8 mm: 0.6 m ( 1.97 ft )
3.6 mm: 1.1 m ( 3.61 ft )
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 37.3 m (122.38 ft) 14.9 m

(48.88 ft)

7.5 m

(24.61 ft)

3.7 m

(12.14 ft)

3.6 mm 53.3 m (174.87 ft) 21.3 m (96.88 ft) 10.7 m

(35.10 ft)

5.3 m

(17.39 ft)

Smart event
IVS Tripwire; intrusion
Video
Video Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream:
1920 × 1080 (1 fps–25/30 fps)
Sub stream:
704 × 576 (1 fps–25 fps)
704 × 480 (1 fps–30 fps)
Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection Disable/Enable (4 areas, rectangle)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711A; G.711Mu; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host 20
Storage FTP; Micro SD card (support max. 256 G); NAS; SFTP
Browser IE
Google
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply 12V DC/PoE
Power Consumption Basic power consumption: 1.7W (12V DC), 2.1W (POE)
Max power consumption (H.265, Max resolution, Max stream, WDR, IR full intensity, IVS): 5.1W (12V DC), 5.9W (POE)
Environment
Operating Conditions –40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Storage Conditions –40°C to +60°C (–40°F to +140°F)
Protection IP67
Structure
Casing Metal + Plastic
Dimensions 100.9 mm × Φ109.9 mm (3.97″ × Φ4.33″)
Net Weight 0.39 kg (0.86 lb)
Gross Weight 0.52 kg (1.15 lb)
